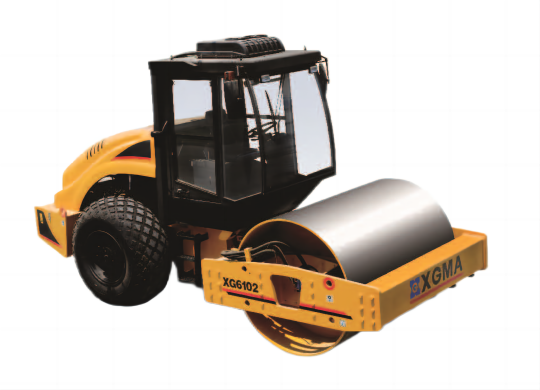

XGMA Roller XG6121H XG6141H XG618H XG620H：
Type/Model：XGMA Hydraulic Vibratory Roller XG6121 XG6141 XG618H XG620H
Operating Weight: 10600-20000kg
Rated Power: 97-140kw
Drum Weight: 6000-11200kg
| Description | Unit | XG6121 | XG6141 | XG618H | XG620H | |
| Operating Weight | kg | 12100 | 14000 | 18500 | 20000 | |
| Drum Weight | kg | 7100 | 8200 | 10350 | 11200 | |
| Driving Wheel(D×W) | mm | Φ1550X2130 | Φ1550X2130 | Φ1550X2130 | Φ1550X2130 | |
| Travel Speed | km/h | 0～4.3 | 0～4.3 | 0～4.5 | 0～4.5 | |
| km/h | 0～6.4 | 0～6.4 | 0～6.5 | 0～6.5 | ||
| km/h | 0～9.2 | 0～9.2 | 0～10.3 | 0～10.3 | ||
| Max. Gradeability | % | 50% | 45% | 35 | 35 | |
| Vibration Frequency | Hz | 30 | 30 | 28/32 | 28/32 | |
| Amplitude (H/L) | mm | 1.7/0.85 | 1.8/0.9 | 2.1/1.2 | 2.1/1.2 | |
| Centrifugal Force(H/L) | KN | 247/127 | 260/130 | 350/210 | 390/260 | |
| Min. Turning Radius | mm | 6300 | 6300 | 6500 | 6500 | |
| Engine | Brand | Cummins | Cummins | SDEC | SDEC | |
| Model | 6BT5.9 | 6BT5.9 | SC8D190.1G2 | SC8D190.1G2 | ||
| Rated power | kW | 112 | 112 | 140 | 140 | |
| Rated speed | rpm | 2400 | 2400 | 2200 | 2200 | |
| Overall Dimension(L×W×H) | mm | 5717×2270×3200 | 5717×2270×3200 | 6254×2332×3232 | 6254×2332×3232 | |
