XGMA Roller XG6011D XG6021D XG6033D XG6041D：

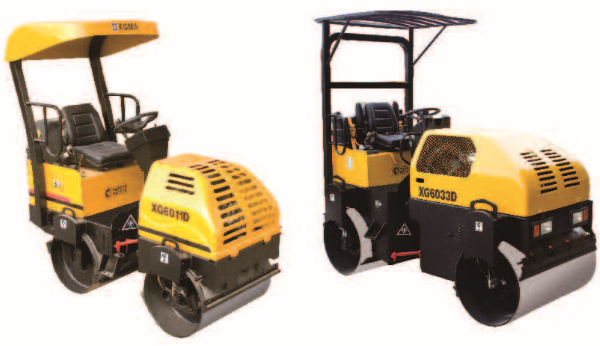

XGMA Tandem Vibratory Roller XG6011D XG6021D XG6033D XG6041D
Operating Weight: 1280-4200kg
Rated Power: 14.9-35.7kw
Drum Width: 900-1300mm
| Description | Unit | XG6011D | XG6021D | XG6033D | XG6041D | |
| Operating Weight | kg | 1280 | 2200 | 3000 | 4200 | |
| Drum Diameter | mm | 560 | 620 | 700 | 800 | |
| Drum Width | mm | 900 | 1000 | 1200 | 1300 | |
| Static Linear Load | N/cm | 86 | 130 | 130 | 162 | |
| Travel Speed | km/h | 0 - 8 | 0 - 7.5 | 0 - 8 | F Ⅰ 0-7.5 / Ⅱ 0-10 R 0-7.5 | |
| Max. Gradeability | % | >20 | 30 | >20 | 30 | |
| Min. Turing Radius(Outside) | mm | 2800 | 4400 | 4800 | 4500 | |
| Min. Ground Clearance | mm | 256 | 260 | 260 | 320 | |
| Steering Angle | ° | ±30° | ±25° | ±30° | ±30° | |
| Swing Angle | ° | ±10° | ±12° | ±12° | ±12° | |
| Vibration Frequency | Hz | 60 | 50 | 50 | 50 | |
| Nominal Amplitude | mm | 0.5 | 0.5 | 0.5 | 0.4/0.5 | |
| Centrifugal Force | KN | 15 | 20 | 30 | 30/38 | |
| Engine | Brand | Honda | Changchai | Changchai | Perkins | |
| Model | GX630 | ZN390Q | ZN390Q | 404D-22 | ||
| Rated power | kW | 14.9 | 25 | 25 | 35.7 | |
| Rated speed | rpm | 3200 | 2600 | 2600 | 2600 | |
| Overall Dimensions(L×W×H) | mm | 2060×1043×2242 | 2615×1130×2400 | 2780×1370×2723 | 2900×1410×2860 | |
